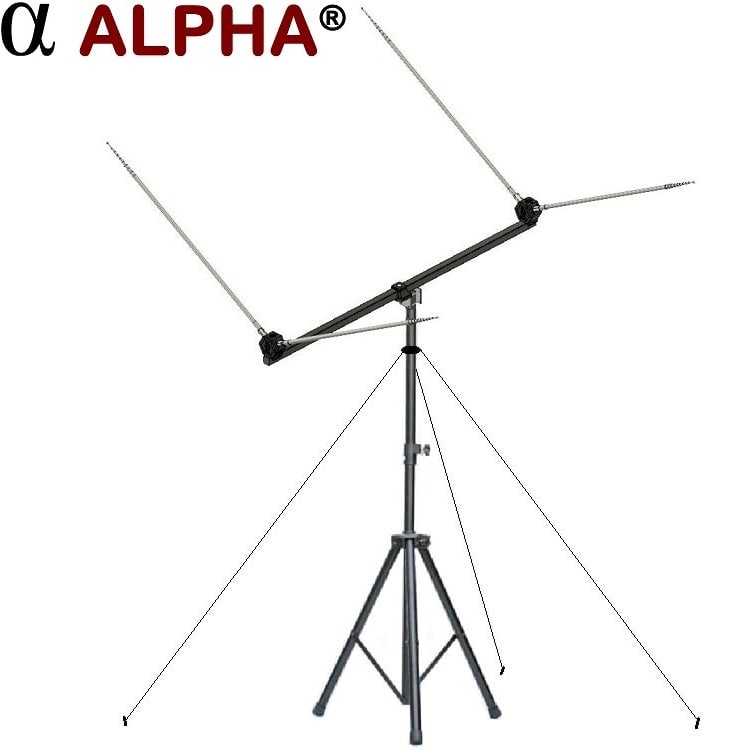

The HexTenna Yagi VHF/HF Beam by Alpha Antenna® is a portable, full-size 2–20 meter system for amateur and military radio, providing continuous legal-limit coverage from 144 to 13.950MHz. Included for mounting are the Military Tripod and a mount for 1.25-inch masts. Use our Make an Offer Program and Click this button if you can’t afford full price. Make An Offer (Without Options) Specifications: Power: Full legal limit RF Connection: SO-239 Frequency: 2 – 20 Meters Environmental operating parameters: -15 to 150 degrees Fahrenheit and winds up to 50 Mph when appropriately guyed. Included: 4 – 17 foot 9 inch telescopic stainless-steel whips (with “Alpha Antenna” laser engraved) 1 – 4 foot boom 2 – Hubs 1 – Top of Mast Mount for installation on a 1.25 to 1.35 inch mast 1 – Non-padded field bag that fits all but the boom. 1 – 1.25″ Guying Adapter for Tripod Mast & 3 Aluminum stakes each with 25′ Black Paracords & Holder. 1 – 5’9″ Tripod and Mast. Analysis Download the following results for the AntScope application here Download Yagi gain document CLICK HERE Properties: Characteristic Specification Weight 19lb/8.62kg Wind Load 4.0sqft/0.37sq m Longest Element 34ft 9inches/10.6 m Turning Radius 17.82ft/5.43 m Boom Length 48in/1.23 m Mast Hardware 1.2500in/3.175 cm to 1.3780in/3.500 cm Power Rating 3KW Wind Rating 40 mph / 64 km/h Frequency Coverage 2-20M and 144-13.850MHz Tuning Rate 1.33 ft/sec – 0.405 m/sec Deployment For temporary outdoor use, deployment can be achieved using the included Top of Mast Mount, which can be affixed to any sized pipe between 1 to 1 1/4 inch outside diameter. It is recommended that you ALWAYS guy this system. Installed on an optional user provided mast using the included Top of Mast Adapter. HexTenna vs HexTenna Yagi and their differences The HexTenna Yagi will not function as a Vertical but can be used as a 2-20M Yagi and you can also use the driven side by itself like the HexTenna as a Dipole by leaving the reflector elements installed as a counterweight. Only the HexTenna Vertical and Dipole will function as both a Dipole or Vertical, covering 2 – 40 Meters, plus 220MHz, & 440MHz. You can tune either one by equally lengthening each element until resonance is achieved. REFERENCE: 2-20M HexTenna Yagi antenna vs a Vertical Dipole VHF HF HF HexTenna Videos Gain demo of Alpha Yagi Beam & Alpha Vertical Gain difference between mounting the HexTenna 15 feet vs 6 feet. Spoiler alert: Moving the HexTenna from the 5 1/2 foot HD Tripod to a 15-foot mast increases your signal by half (1/2) an S-Unit. Environmental Tests Independent environmental tests by Steven Smith K3SKS with the system deployed in 55 mph, wind gusts and ice on the elements, which enables us to rate this system for 50 mph winds. NOAA Report for this deployment Assistance FAQs: HexTenna antenna by Alpha Antenna We listen! We are dedicated to improving all of our Portable VHF UHF HF Antennas. Specifications and descriptions are subject to change without notice. 5.0 Based on 4 reviews5 star100100%4 star0%3 star0%2 star0%1 star0% Search1-4 of 4 reviewsMost RecentMost Helpful Protected_User_164b61bd Verified owner April 25, 2024 2-20M HF VHF Yagi Deluxe AntennaVerified review - view originalVery well built antenna and guys at Alpha worked really hard to get it to me for a light house activation. Thanks! Protected_User_b2cfa0b7 Verified owner February 19, 2024 2-20M HF VHF Yagi Deluxe AntennaVerified review - view originalThe Yagi HexTenna was packaged extremely well and its build quality which was exceptional. We also purchased the Hextenna Dipole with the similar results. We are also strongly considering the 10m-40m, 100 Watt MagLoop. Steve (Owner) has been extremely interactive with our many questions and we wouldn’t hesitate purchasing any product from Alpha Antenna. Protected_User_38941122 Verified owner October 9, 2023 2-20M HF VHF Yagi Deluxe AntennaVerified review - view originalGreat antenna system, easy to setup, really versatile. Protected_User_4a2fe6fc Verified owner October 6, 2023 2-20M HF VHF Yagi Deluxe AntennaVerified review - view original Sorry, no reviews match your current selections
